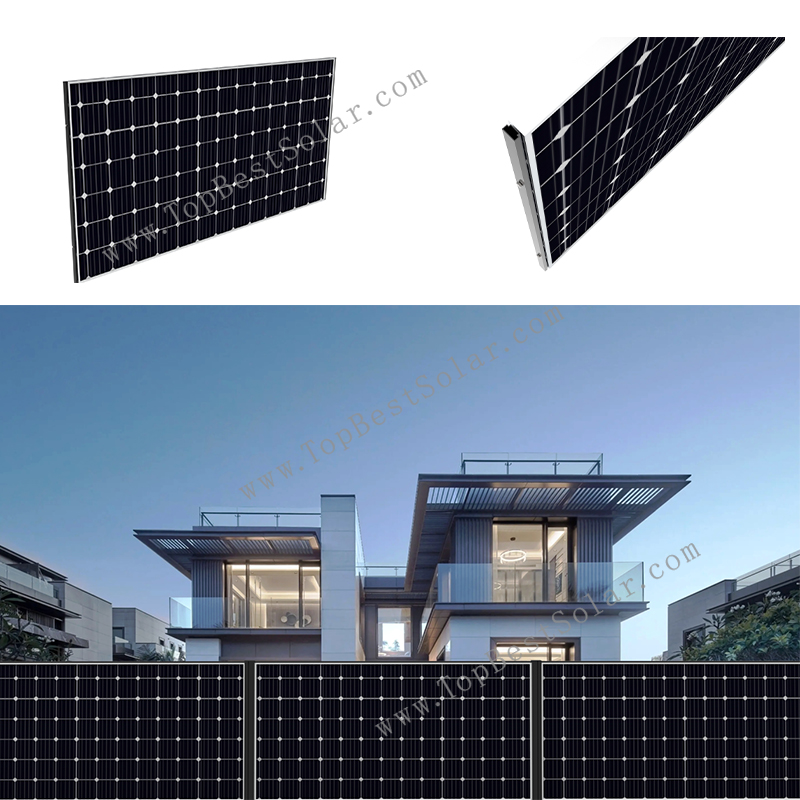

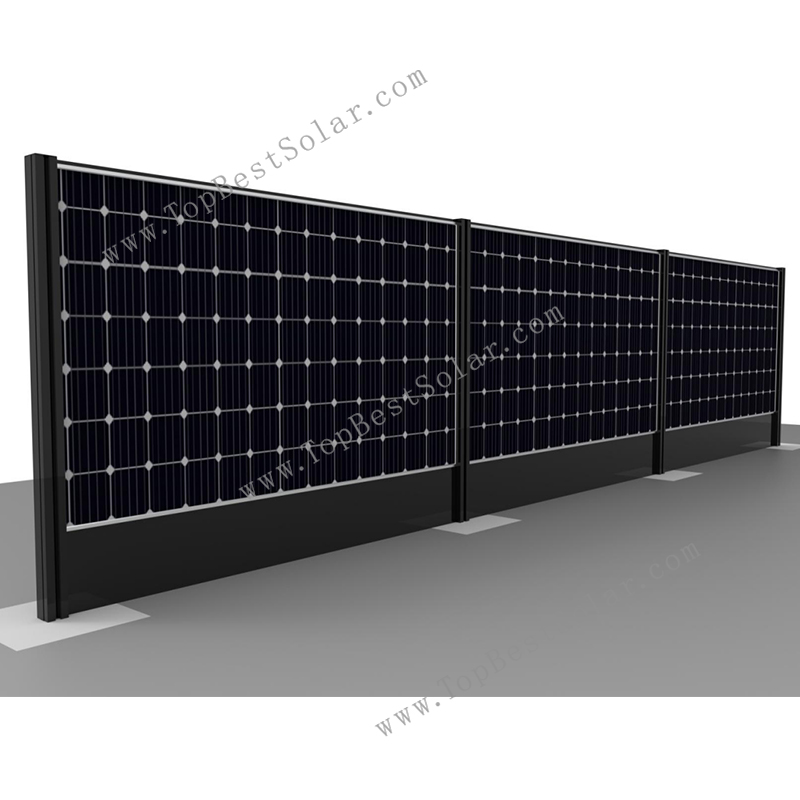

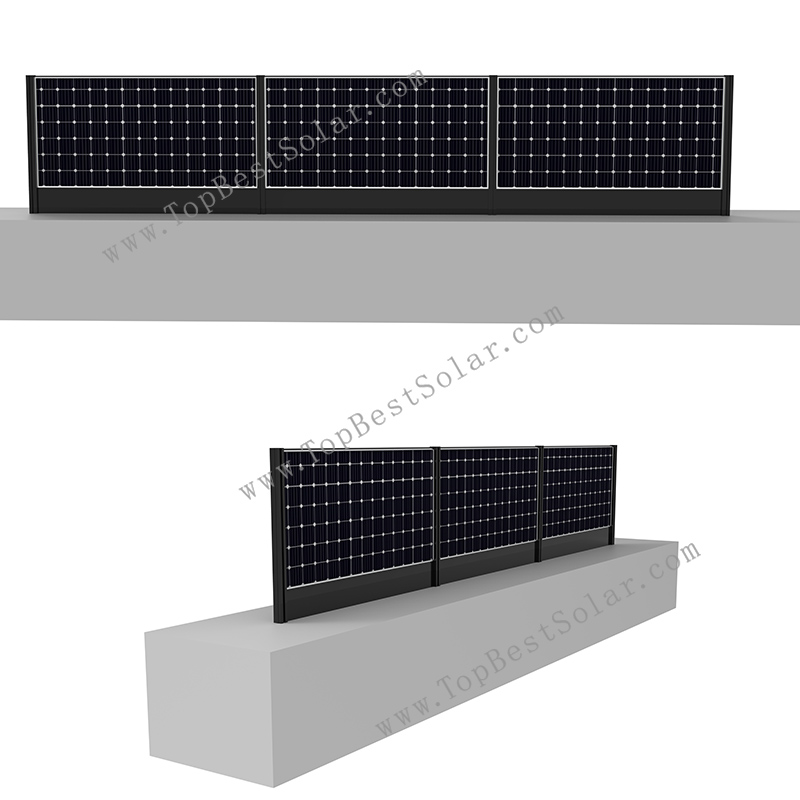

Vertical Solar Panel Mount
Installation Site: Ground
Material: Aluminum, SUS304
Tilt Angle: 90°
PV Module: Framed, Frameless
PV Orientation: Portrait, Landscape
Wind Load: 60 m/s
Snow Load: 1.4 KN/M2
Product Description:
This vertical solar panel mount is an integrated ground‑mounting solution engineered for dual‑use agricultural and energy sites, delivering high stability, efficient land use, and fast installation. Built with high‑strength material and protected by advanced anti‑corrosion coatings, it supports long‑term outdoor operation while enabling co‑existing farming, grazing, and clean power generation.

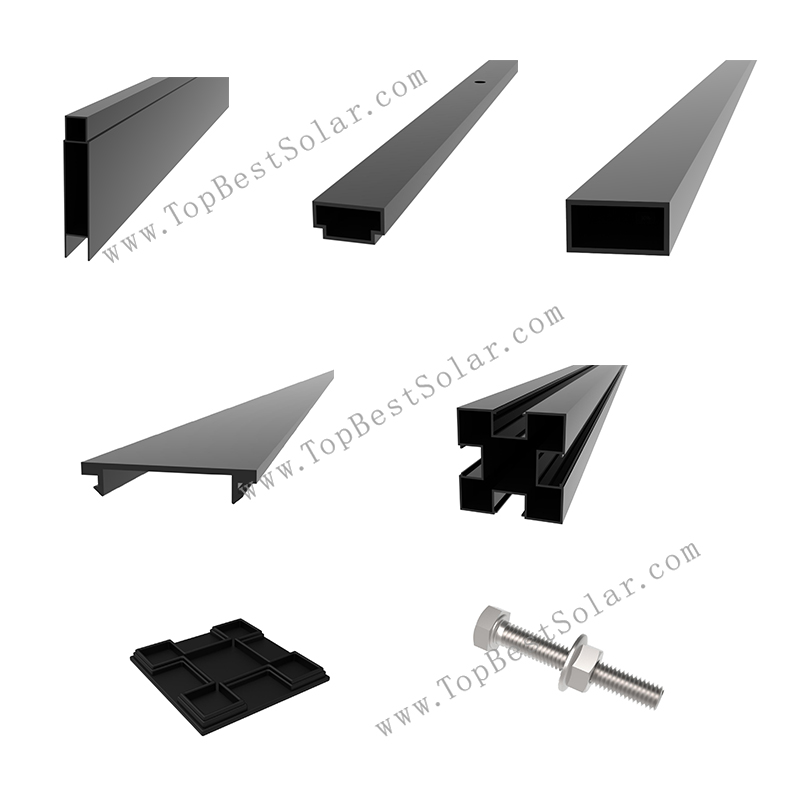

Components of vertical solar panel mount:
1. Fence Pipe
2. Guard Board
3. Solar Panel Fixing Strip
4. Solar Panel Frame Strip
5. Fence Pipe Side Cover
6. Fence Pipe Top Cover
7. M6*40 Bolt
Features of vertical solar panel mount:
1. Optimized 90° vertical layout boosts land utilization and supports agrivoltaic systems.
2. High‑strength aluminum structure delivers strong wind resistance and long service life.
3. Modular prefabricated parts enable quick drop‑in installation without on‑site welding.
4. Neat, streamlined profile for better ventilation, less dust/snow buildup, and easier maintenance.
5. Stable self‑locking fasteners ensure long‑term structural safety and reliability.
6. Designed for farm, pasture, and ground solar plants with minimal site disruption.
This vertical solar panel mount is an ideal mounting solution for ground, farmland, and various other solar projects, delivering exceptional performance characterized by durability, low maintenance requirements, and high returns.
Welcome to get more details of our vertical solar panel mount for your renewable energy project from www.TopBestSolar.com
Marker Pen
Adjustable Wrench
Allen Key Wrench
Electric Screwdriver Wrench
Tape Measure
Cement Mixer
Nylon Line
T Wrench
Here are the installation steps for vertical solar panel mount:
1. Fixing the solar panel and solar panel fixing strip with M6*40 bolt (Note: the holes of the fixing strip and the assembly holes are drilled by the customer according to the assembly frame).
2. Install the fence pipe side cover into the fence pipe.

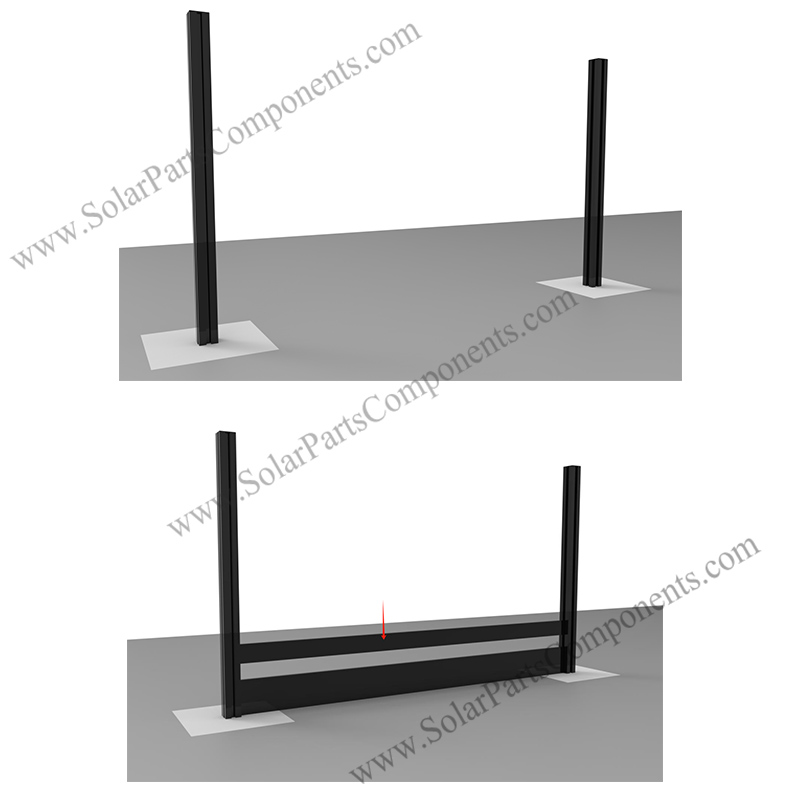

3. Place the installed fence pipe into the dug pit, fix it according to the size required by the drawing, and pour cement.
4. Place the 3 guard board into the fence slots.

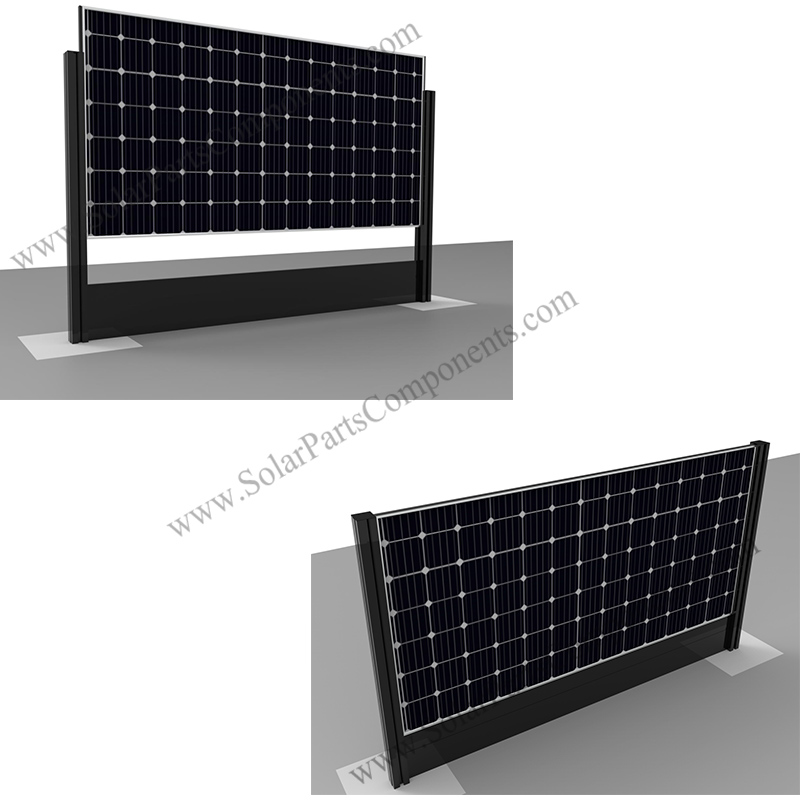

5. Place the fixed solar panel into the grooves on both sides of the fence.
6. Place the solar panel strips along the grooves on both sides of the fence.
7. The installation of vertical solar panel mount is completed.
Vertical Solar Panel Mount Factory
1. What is a Vertical Solar Panel Mount?
A Vertical Solar Panel Mount is a specialized mounting system designed to install solar panels in a vertical orientation (standing upright, rather than the traditional horizontal or tilted angle). It is widely used in scenarios such as solar fence systems, building facades, and narrow spaces where horizontal installation is not feasible, leveraging vertical space to harness solar energy efficiently.
2. What is the main difference between vertical solar panel mounts and traditional tilted mounts?
The core difference lies in the installation orientation and space utilization: Traditional tilted mounts are usually installed at a fixed angle (adapted to the local latitude) to maximize sun exposure, while vertical mounts place panels upright, parallel to the ground. Additionally, vertical mounts are more suitable for narrow or vertical spaces (such as fence rails, wall surfaces), while traditional mounts are mostly used for rooftops or open ground. In terms of energy generation, vertical mounts may have different sun exposure times depending on the direction, but they can better adapt to limited space scenarios.

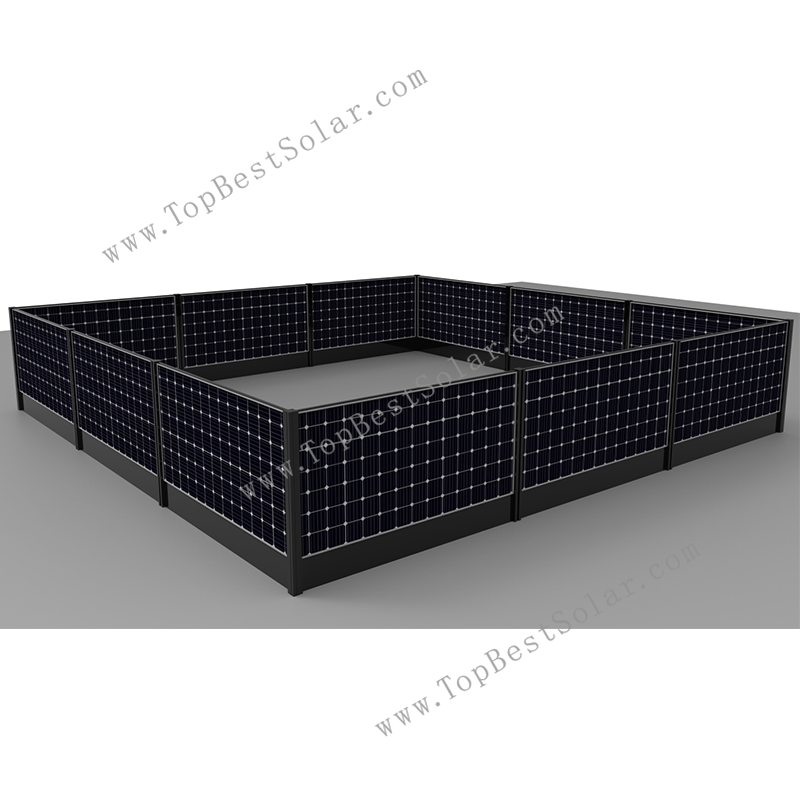

3. Can vertical solar panel mounts be used for solar fence systems?
Yes, vertical solar panel mounts are an ideal choice for solar fence systems. They can be seamlessly integrated with fence structures (such as electric fences for livestock, residential fences), utilizing the vertical space of the fence to install solar panels without occupying additional ground area. This integration not only generates clean electricity to power the fence (e.g., electric fence for farmers) but also achieves dual functions of energy generation and fence protection, which is consistent with the application scenario of solar fence mounting systems.
4. Is it difficult to install a vertical solar panel mount? Do I need professional help?
Vertical solar panel mounts adopt a cement embedding installation method, which is reliable and easy to operate, and also conforms to the installation logic of solar fence mounting systems. The installation process mainly includes pre-embedding cement bases in the designated positions (the depth and size of the cement base should be determined according to the local soil conditions and the weight of the solar panel), waiting for the cement to solidify and form a stable support, and then assembling and fixing the prefabricated components (solar panels, brackets, controllers, batteries) on the cement base. For homeowners or farmers with basic construction experience, self-installation is feasible. However, if the installation involves a large number of panels, uneven ground, or complex fence structures, it is recommended to seek professional help to ensure the firmness of the cement embedding, as well as the installation safety and stability of the entire mounting system.
6. Can vertical solar panel mounts be installed on existing fences?
- Description
-
Product Description:
This vertical solar panel mount is an integrated ground‑mounting solution engineered for dual‑use agricultural and energy sites, delivering high stability, efficient land use, and fast installation. Built with high‑strength material and protected by advanced anti‑corrosion coatings, it supports long‑term outdoor operation while enabling co‑existing farming, grazing, and clean power generation.
Components of vertical solar panel mount:
1. Fence Pipe
2. Guard Board
3. Solar Panel Fixing Strip
4. Solar Panel Frame Strip
5. Fence Pipe Side Cover
6. Fence Pipe Top Cover
7. M6*40 BoltFeatures of vertical solar panel mount:
1. Optimized 90° vertical layout boosts land utilization and supports agrivoltaic systems.
2. High‑strength aluminum structure delivers strong wind resistance and long service life.
3. Modular prefabricated parts enable quick drop‑in installation without on‑site welding.
4. Neat, streamlined profile for better ventilation, less dust/snow buildup, and easier maintenance.
5. Stable self‑locking fasteners ensure long‑term structural safety and reliability.
6. Designed for farm, pasture, and ground solar plants with minimal site disruption.
This vertical solar panel mount is an ideal mounting solution for ground, farmland, and various other solar projects, delivering exceptional performance characterized by durability, low maintenance requirements, and high returns.
Welcome to get more details of our vertical solar panel mount for your renewable energy project from www.TopBestSolar.com
- Installation Instruction
-
Proper installation of vertical solar panel mount requires the following professional tools to guarantee structural safety and installation accuracy:
Marker Pen
Adjustable Wrench
Allen Key Wrench
Electric Screwdriver Wrench
Tape Measure
Cement Mixer
Nylon Line
T Wrench
Here are the installation steps for vertical solar panel mount:
1. Fixing the solar panel and solar panel fixing strip with M6*40 bolt (Note: the holes of the fixing strip and the assembly holes are drilled by the customer according to the assembly frame).
2. Install the fence pipe side cover into the fence pipe.
3. Place the installed fence pipe into the dug pit, fix it according to the size required by the drawing, and pour cement.
4. Place the 3 guard board into the fence slots.
5. Place the fixed solar panel into the grooves on both sides of the fence.
6. Place the solar panel strips along the grooves on both sides of the fence.
7. The installation of vertical solar panel mount is completed.
- FAQ
-
Vertical Solar Panel Mount Factory
1. What is a Vertical Solar Panel Mount?
A Vertical Solar Panel Mount is a specialized mounting system designed to install solar panels in a vertical orientation (standing upright, rather than the traditional horizontal or tilted angle). It is widely used in scenarios such as solar fence systems, building facades, and narrow spaces where horizontal installation is not feasible, leveraging vertical space to harness solar energy efficiently.
2. What is the main difference between vertical solar panel mounts and traditional tilted mounts?
The core difference lies in the installation orientation and space utilization: Traditional tilted mounts are usually installed at a fixed angle (adapted to the local latitude) to maximize sun exposure, while vertical mounts place panels upright, parallel to the ground. Additionally, vertical mounts are more suitable for narrow or vertical spaces (such as fence rails, wall surfaces), while traditional mounts are mostly used for rooftops or open ground. In terms of energy generation, vertical mounts may have different sun exposure times depending on the direction, but they can better adapt to limited space scenarios.
3. Can vertical solar panel mounts be used for solar fence systems?
Yes, vertical solar panel mounts are an ideal choice for solar fence systems. They can be seamlessly integrated with fence structures (such as electric fences for livestock, residential fences), utilizing the vertical space of the fence to install solar panels without occupying additional ground area. This integration not only generates clean electricity to power the fence (e.g., electric fence for farmers) but also achieves dual functions of energy generation and fence protection, which is consistent with the application scenario of solar fence mounting systems.
4. Is it difficult to install a vertical solar panel mount? Do I need professional help?
Vertical solar panel mounts adopt a cement embedding installation method, which is reliable and easy to operate, and also conforms to the installation logic of solar fence mounting systems. The installation process mainly includes pre-embedding cement bases in the designated positions (the depth and size of the cement base should be determined according to the local soil conditions and the weight of the solar panel), waiting for the cement to solidify and form a stable support, and then assembling and fixing the prefabricated components (solar panels, brackets, controllers, batteries) on the cement base. For homeowners or farmers with basic construction experience, self-installation is feasible. However, if the installation involves a large number of panels, uneven ground, or complex fence structures, it is recommended to seek professional help to ensure the firmness of the cement embedding, as well as the installation safety and stability of the entire mounting system.
6. Can vertical solar panel mounts be installed on existing fences?
Our vertical solar panel mounts are specifically designed to be compatible with metal fences, including aluminum alloy fences and zinc-aluminum-magnesium fences. The brackets can be firmly fixed to the rails or posts of these metal fences without requiring major modifications to the original fence structure. - Leave Message
-
