Wholesale Triangle Solar Panel Mounting

Product Description:

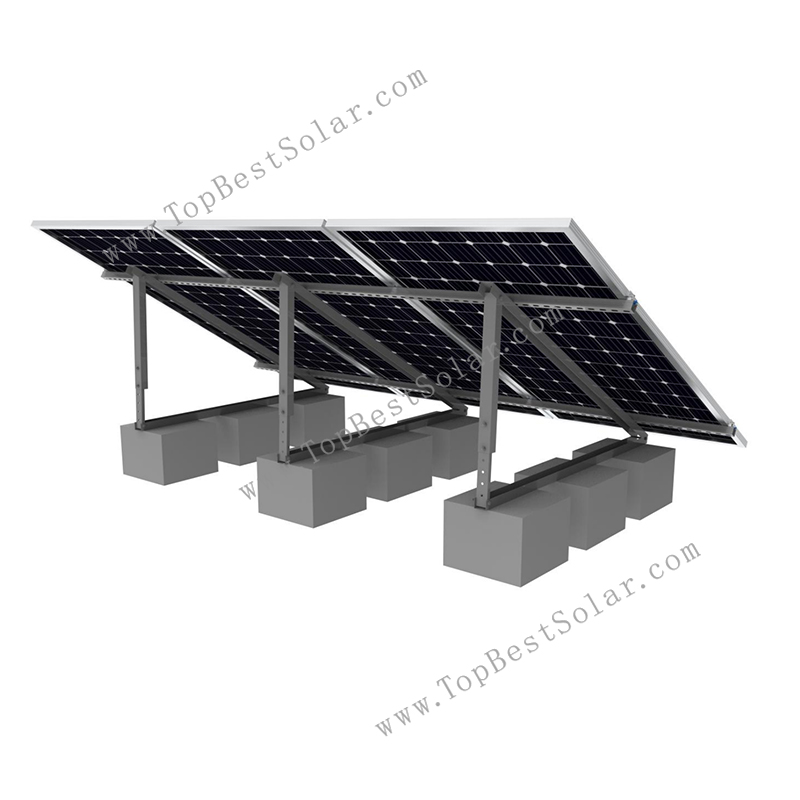

Triangle solar panel mounting suits flat roofs and ground installation. This common rack sets proper tilt angles to boost power generation.The angle can be adjusted from 24-33°. Featuring innovative U steel rails, special modules and triangle kits, this product comes with high pre-assembly design. No on-site cutting or welding is required, allowing fast and simple solar panel installation. It works well when original surfaces cannot offer ideal angles for solar panels.

Features of  triangle solar panel mounting:
1）Suitable for residential and commercial flat roofs.
2）Easy expansion for higher power demand.
3）Flexible installation on sloped and flat roof surfaces.
4）Fits most framed and frameless solar panels available on the market.

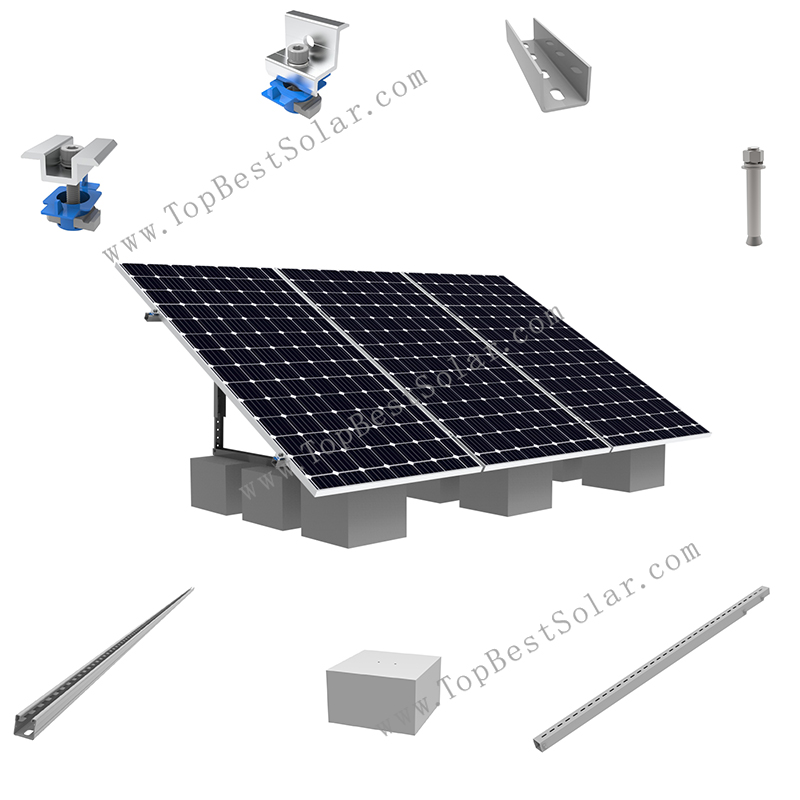

Components of triangle solar panel mounting:
1. Adjustable triangle rack
2. Mid clamp
3. End clamp
4. Concrete block
5. U rail
6. Rail connector
7. Expansion Bolt

This durable triangle solar panel mounting delivers stable, adjustable and easy-install support, ideal for diverse rooftop and ground solar projects.

Welcome to get inquiry about this triangle solar panel mounting>>
Email: info@topbestsolar.com
WhatsApp/mobile: +86 18359260008

Marker Pen

Adjustable Wrench

Allen Key Wrench

Electric Screwdriver Wrench

Tape Measure

Pile Driver

Nylon Line

T Wrench

Here are the installation steps：

1. Pre-assembled mid clamp and end clamp.

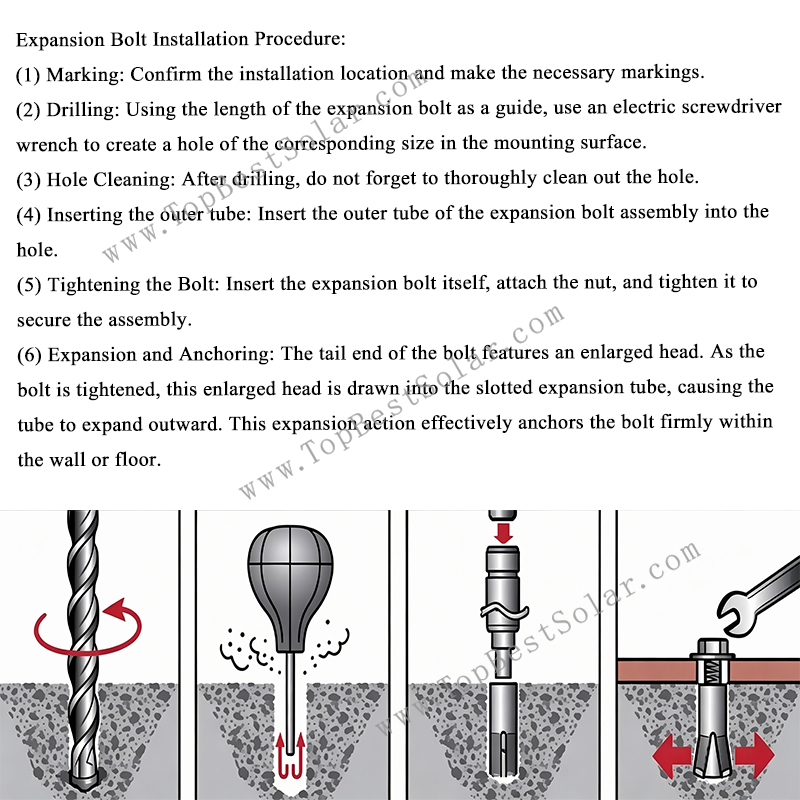

2. Drill holes in the concrete foundation and drive in the expansion bolts.

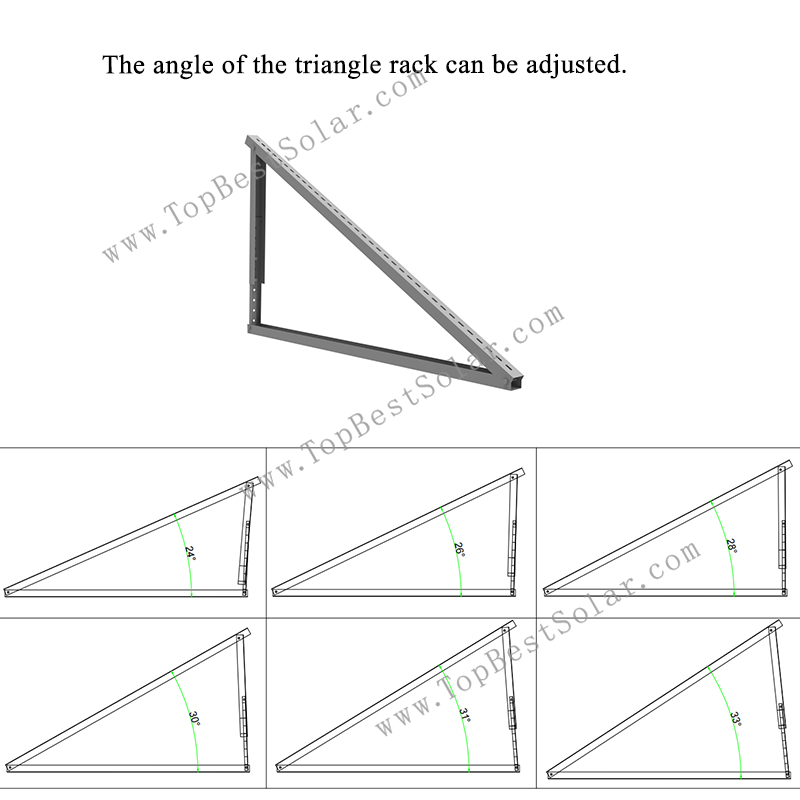

3. Unfold the triangle rack.(The angle of the triangle rack can be adjusted between 24 and 33 degrees).

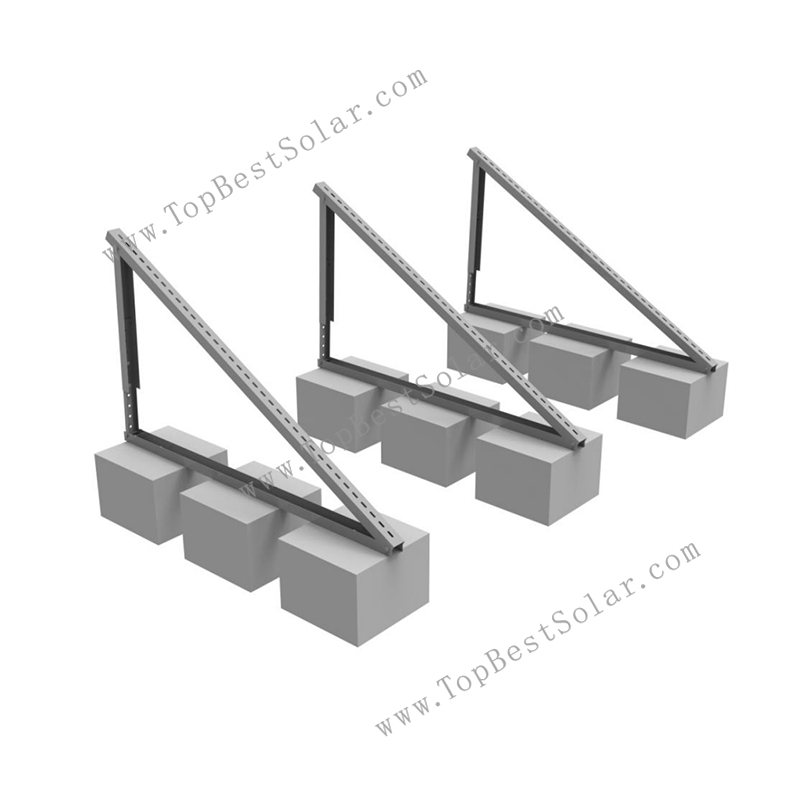

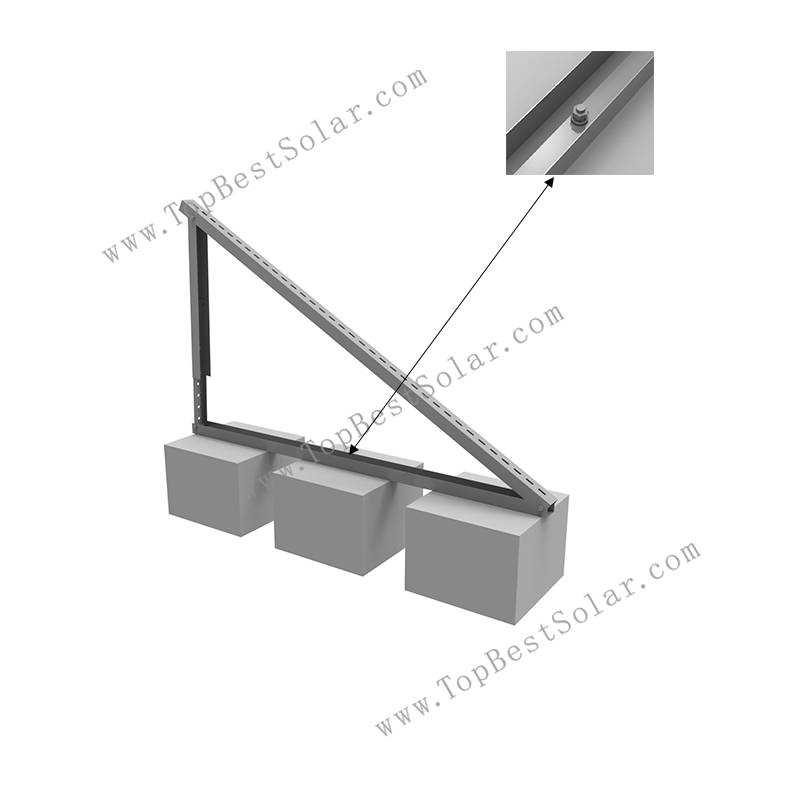

4. Fix the triangle rack on the concrete block.
5. Fix the rail on the triangle rack using the M8 bolt assembly.
6. Attach therail with the mid and end clamps.
7. Lock the bolt of mid and end clamp to secure the solar panel.
8. When the rails need to be joined, they should be fixed by using rail connectors.
9. The installation is completed.
