Solar Cable Tray System
Installation Site: Metal roof, Flat roof, Wall
Material: S350-ZM
PV Module: Framed, Frameless
PV Orientation: Portrait, Landscape
Wind Load: 60 m/s
Snow Load: 1.4 KN/M2
Product Description：
Our self-locking cable tray is a purpose-built cable management solution engineered exclusively for photovoltaic (PV) installations. Fabricated from premium S350-ZM , this cable tray for solar panel delivers exceptional corrosion resistance and structural durability for long-term outdoor service.
Designed to accommodate DC string cables, AC output cables, and grounding conductors in an organized, code-compliant layout, this tray is available in multiple sizes to suit residential, commercial, and utility-scale solar projects.
Features of cable tray for solar panel：
1) Innovative Self-Locking Mechanism
2) Premium S350-ZM Construction
3) Versatile Mounting Options
4) Comprehensive Cable Protection
System components for cable tray for solar panel:

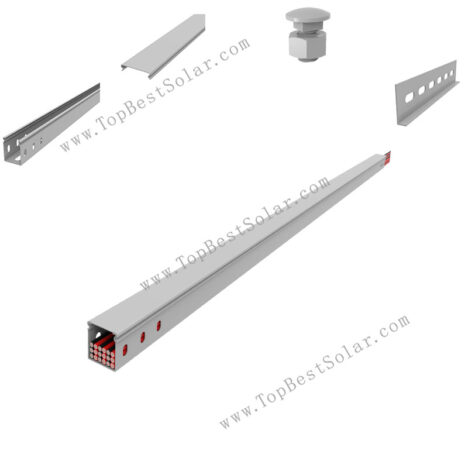

1. Cable Tray Trunking
2. Cable Tray Cover
3. M6 Bolt
4. M8 Bolt
5. L Connector
6. Support Bracket
7. Self-tapping Screw
8. Expansion Bolt
9. Expansion Bolt for Ceiling
Our solar cable tray is a specialized cable management system engineered to organize, support, and protect electrical wiring in photovoltaic (PV) installations. Constructed from high-grade materials, these trays are designed to withstand the harsh outdoor conditions inherent to solar projects.
Welcome to get more details of our for your renewable energy project from www.TopBestSolar.com
Marker Pen
Adjustable Wrench
Allen Key Wrench
Electric Screwdriver Wrench
Tape Measure
Pile Driver
Nylon Line
Cutting Machine
Laser Rangefinder
Here are the installation steps：
1. Install the self-locking cable tray, press the cover into trunking.
2. The cable tray should be connected with joining fittings and secured using M6 bolt.
And there are five fixation methods of cable tray for solar panel:
1. The application scenarios of metal roofs are fixed using self-tapping screws.
2. The application scenarios of metal roofs are fixed using support bracket 1.
3. The application scenarios of flat roofs and walls fixed using screws.
4. The application scenarios of walls are fixed using support bracket 2.
5. Install the cable tray on the ceiling using expansion bolts.
