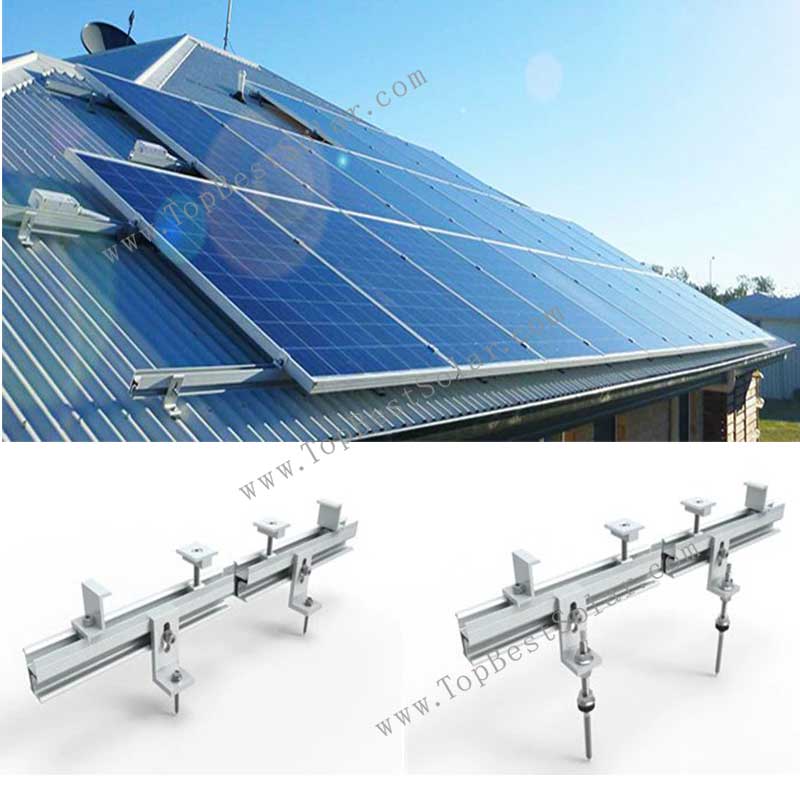

solar roof mounting system with L foot brackets
Model:SPC-RF-IK08-DT
Installation Site: Metal Roofing
Material: 6005-T5 Alum,SUS304,
Tilt Angle: 0° to 60°
PV Module: Framed, Frameless
PV Orientation: Portrait, Landscape
Wind Load: 60 m/s
Snow Load: 1.4 KN/M2
Product Description:
Solar roof mounting with L foot brackets are wildly used in solar roof mounting, suitable for most type of corrugated metal roofs, installation angles are available from 10 degrees to 60 degrees.
Aluminum and stainless steel material, ensure high durable component, provide a sturdy and easy-to-mount choice for tin roofing.
The L feet are very easy to be mounted on the tin roof by using our wood screws, EPDM washer can prevent rain leaking and protect the rooftop from rust.Solar roof mounting system with L foot brackets are designed to maximize the horizontal installation flexibly, and support the rails sturdily on the roof.
Solar L foot mounting brackets for tin roof are easy to install, reliable at reduced installation time and cost for PV roof mounting.
Parts and components for solar roof mounting with L foot brackets:
-L feet backets;
-Wood screws;
-Aluminum rails;
-Rail splice;
-Mid/end clamps
-EPDM rubber pads
Installation steps of solar roof mounting system with L foot brackets:
- Fasten L feet onto the metal roof with wood screw ;
- Connect the rail to the L feet by bolts and nuts;
- Fix the solar panels on the rails by our mid/end clamps.
Features of this solar roof mounting with L foot brackets:
- Easy and fast to install;
- Wildly be use in commercial and residential metal rooftop;
- Use EPDM washer provide maximum waterproofing;
- Light material,anodized, long life span.
In order to meet the needs of different demand, we provide L feet kit with different measurement, length, slot size, width,available for customized. Welcome to consulate and purchase from us, our website is: www.TopBestSolar.com.
| Brief Descriptions: | |
| Solar Mounting System –solar roof mounting with L foot brackets | |
| Item type: | Solar Panel Roof Mounting kits |
| Type: | SPC-RF-IK08-DT |
| Installation Site: | Metal Roof |
| Profile Material: | Aluminum Alloy |
| Fasten Parts | Stainless Steel |
| PV Modules: | Frameless or Framed panel |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M2 |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Can you install solar panels to a metal roof?
Solar panels can be used on corrugated metal roofs, however, the roof will need to be penetrated with screws along with sealant to cover the holes.
L-foot bracket is the most common way to fix solar panels on metal roofs in the market.
An L-foot refers to a solar panel mounting system that utilizes L-foot brackets to secure solar panels to various surfaces, like rooftops mounts. This method is popular for its simplicity and effectiveness in providing a stable foundation for solar installations.
Solar L-foot strong and reliable support structure
Benefits of the L foot for metal roof
L-Foot Brackets:
These brackets are shaped like the letter “L,” designed to attach solar panels to the mounting structure. They provide a secure and adjustable connection point.
Material:
Typically made from durable materials such as aluminum or stainless steel, which are resistant to corrosion and can withstand varying weather conditions.
Versatility:
Suitable for a wide range of applications, including residential rooftops, commercial buildings, and solar farms.
Adjustable Angles:
Many L-foot systems allow for angle adjustments, enabling optimization of the solar panel tilt for maximum sunlight exposure.
Stability:
Provides a strong and reliable support structure, ensuring that solar panels remain securely mounted even in adverse weather conditions.
Ease of Installation:
The design of L-foot brackets simplifies the installation process, reducing labor time and costs.
Compatibility:
Compatible with various types of solar panels and mounting systems, making them a flexible choice for different projects.
Cost-Effective:
Generally more affordable than other mounting systems while still providing robust support.

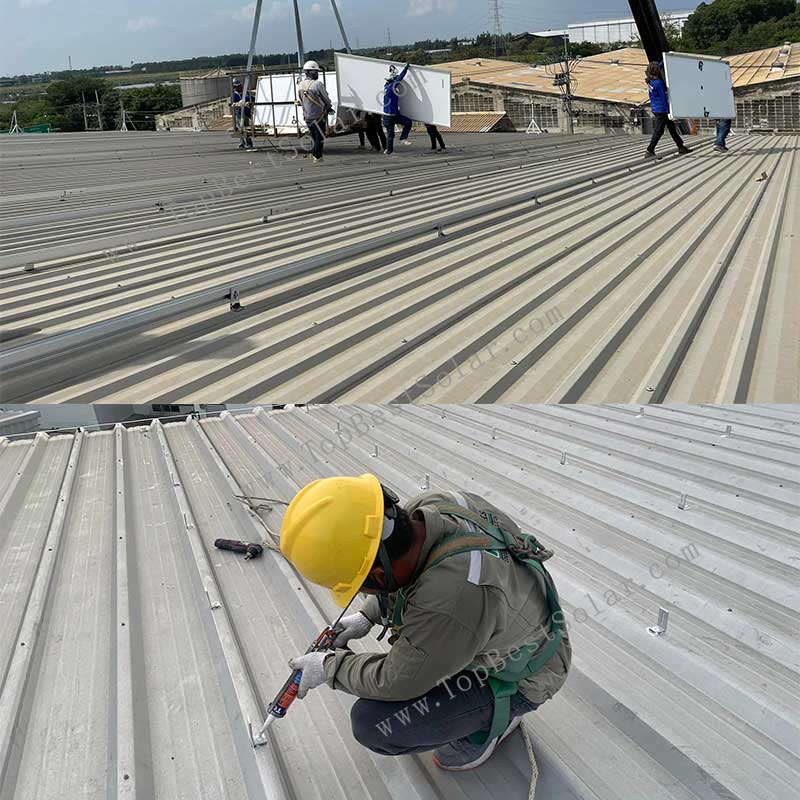

Solar metal roof L foot mounting system
Conclusion
The L-foot solar mounting is an effective and reliable approach to mounting solar panels. Its combination of stability, ease of installation, and versatility makes it a popular choice for various solar applications. By ensuring proper installation and maintenance, L-foot systems can help maximize the efficiency and longevity of solar energy systems.
Solar roof mounting with L foot bracket factory
Dear Sir,
I am interested in your solar roof mounting with L foot bracket system.
Kindly send us your offer for the following along with delivery period, specification/data sheet and origin:
solar roof mounting with L foot bracket factory
A:
Hi dear Ms.Shylaja
Nice to get your inquiry for our solar roof mounting with L foot bracket metal roof system.
Please refer to our quotation for the L feet mounting system components as your requirement,
please make sure quantity and details are correct as below:
| Item | Description: | Unit | Qty |
| 1 | solar B-Rail (Material: AL6005-T5 & SUS304/315 Length: 4000mm) | PCS | 5,000.00 |
| 2 | Splice Kit (Material: AL6005-T5 & SUS304/315) | PCS | 1,000.00 |
| 3 | solar Mid Clamp (including bolt and nut) Material: AL6005-T5 & SUS304/315 Height: 30mm Length: 40mm | PCS | 5,000.00 |
| 3 | Mid Clamp (including bolt and nut) Material: AL6005-T5 & SUS304/315 Height: 35mm Length: 40mm | PCS | 5,000.00 |
| 4 | solar End Clamp (including bolt and nut) Material: AL6005-T5 & SUS304/315 Height: 30mm Length: 40mm | PCS | 5,000.00 |
| 4 | End Clamp (including bolt and nut) Material: AL6005-T5 & SUS304/315 Height: 35mm Length: 40mm | PCS | 5,000.00 |
| 5 | L-Feet (including bolt and nut) Material: AL6005-T5 Length: 4000mm Height: 80mm / L Foot Brackets | PCS | 10,000.00 |
Thank you.
Solar roof mounting with L foot bracket factory SALES TEAM
