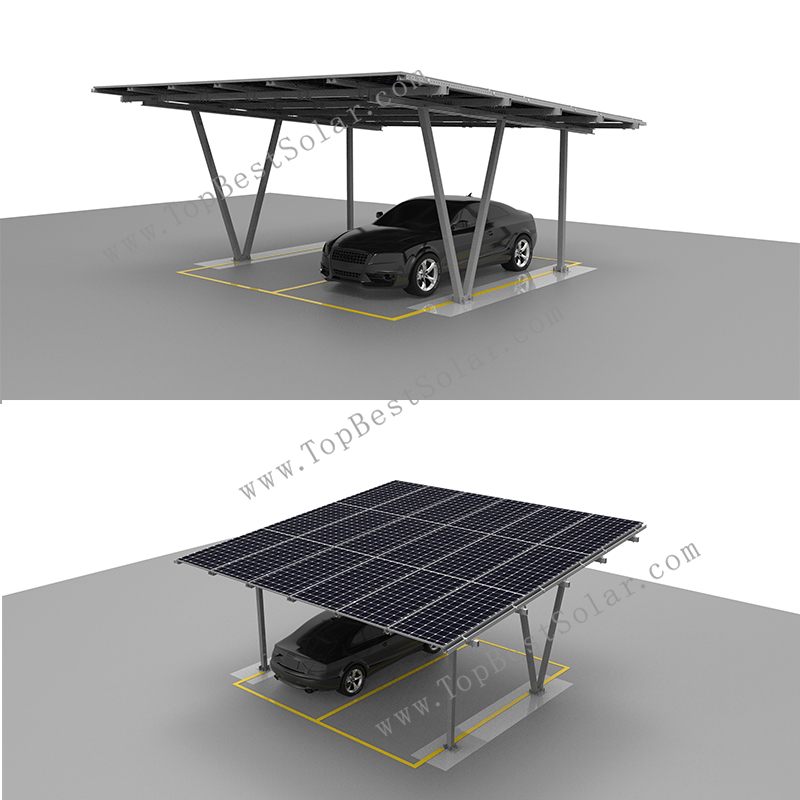

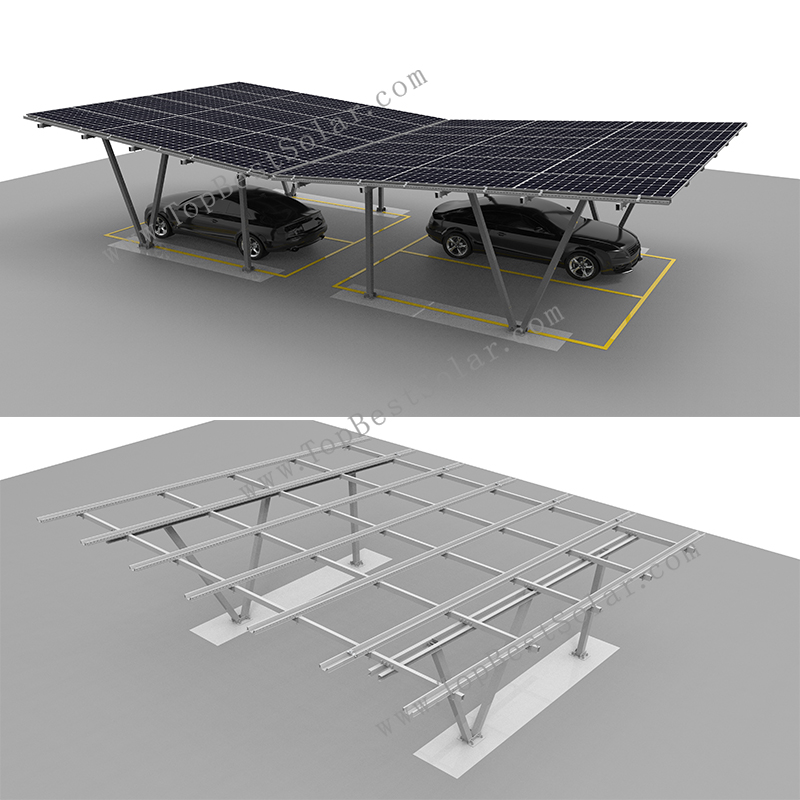

Solar Panel Ground Mounting Carport & Canopies
Installation Site: Open area
Material: S350-ZM, Q235/AL6005-T5
Tilt Angle: 5° to 15°
PV Module: Framed, Frameless
PV Orientation: Portrait, Landscape
Wind Load: 60 m/s
Snow Load: 3.6 KN/M2
Solar Panel Ground Mounting Carport & Canopies is a versatile, high-performance solution that seamlessly integrates solar power generation with practical vehicle shelter, designed to cater to both residential and commercial needs. As a ground-mounted structure, it not only serves as a reliable carport or canopy but also transforms outdoor spaces into efficient renewable energy hubs.
Core Advantages: Beyond Shelter & Power
Universal Compatibility for Flexible PV Integration
Engineered to work with most commercial solar panels—regardless of size, wattage, or technology (monocrystalline, polycrystalline, or thin-film). Its adaptable mounting system (including M Rails, mid clamps, and end clamps) allows easy adjustment to fit panels from 60-cell to 72-cell configurations, making it a versatile choice for projects of any scale, from small residential driveways to large commercial parking lots.
Advanced Waterproof Design for All-Weather Protection
Leakage is eliminated through a multi-layer waterproofing system:
- High-grade, weather-resistant materials (such as anti-corrosive aluminum alloys and UV-stabilized polymers) form the structure’s core, preventing water absorption and rust.
- Sealed joints with industrial-grade silicone sealant—resistant to extreme temperatures (-40°C to 80°C)—create a tight barrier against rain, dew, and snowmelt.
- Strategic drainage engineering, including sloped beam designs and integrated 导流槽 (diversion channels), ensures rapid water runoff, avoiding pooling that could damage panels or vehicles below.
Industrial-Grade Durability for Long-Term Reliability
Built to withstand harsh environmental conditions:
- Wind resistance: Tested to endure wind speeds up to 120km/h (equivalent to a Category 1 hurricane), thanks to reinforced columns and anchor bolts that secure the structure firmly to the ground.
- Snow load capacity: Supports up to 0.7kN/m² (approximately 70kg/m²) of snow, preventing collapse during heavy winter storms.
- Corrosion resistance: All metal components (columns, beams, clamps) undergo hot-dip galvanization or powder coating, ensuring a lifespan of 25+ years with minimal maintenance.
Comprehensive Vehicle Protection
Beyond sheltering cars, trucks, or EVs from rain, snow, and hail, the canopy blocks 90%+ of harmful UV rays—preventing interior fading, dashboard cracking, and overheating (keeping 车内温度 up to 15°C cooler than exposed vehicles). This reduces wear on tires, batteries, and paint, extending vehicle lifespan by 3-5 years on average.
System Components: Engineered for Stability & Ease
Every part is precision-manufactured for seamless assembly and long-term performance:

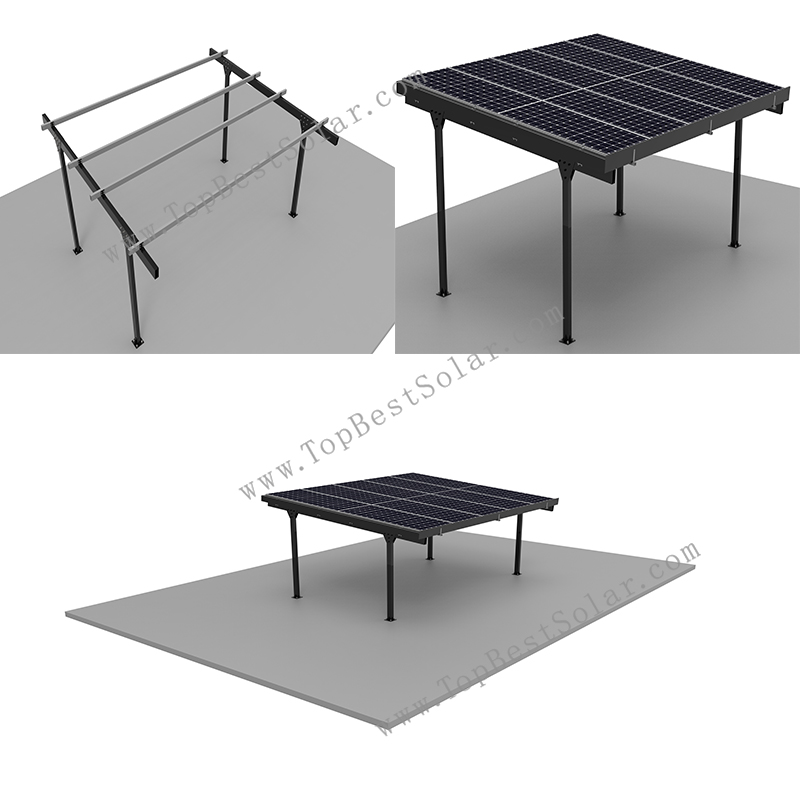

- Columns: Heavy-duty steel or aluminum supports (100-150mm diameter) that bear vertical loads, with adjustable height (2.5m-4m) to accommodate different vehicle sizes.

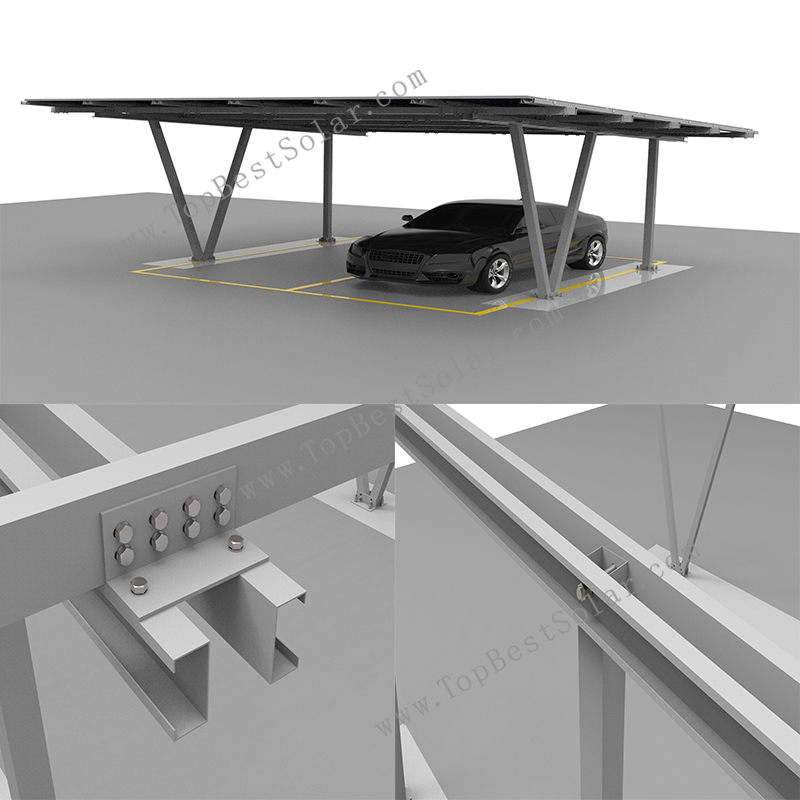

- Beam & Longitudinal Beam: High-strength rectangular tubes (80x40mm or 100x50mm) forming the main frame, connected via bolted joints for rigidity.
- Block Kits: Spacers that maintain optimal gaps between beams, ensuring structural balance and drainage space.

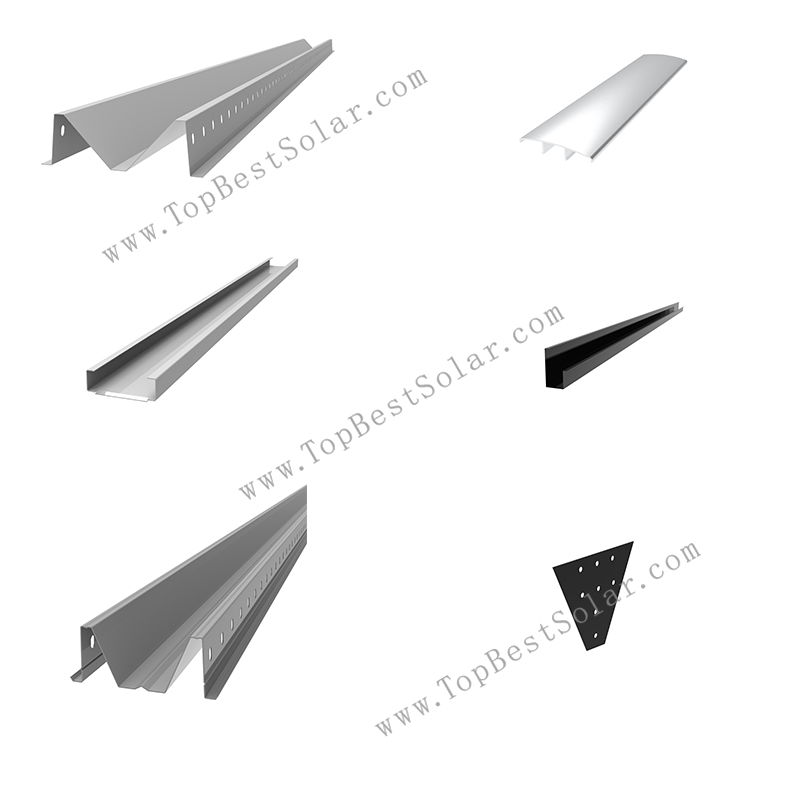

- M Rail: Aluminum alloy rails (60x30mm) that secure solar panels, with pre-drilled holes for quick clamp installation.
- U Channel: Reinforces beam connections, enhancing lateral stability against wind shear.
- Anchor Bolt: High-tensile steel bolts (M16-M20) that anchor columns to concrete foundations, preventing shifting in soil or during seismic activity.

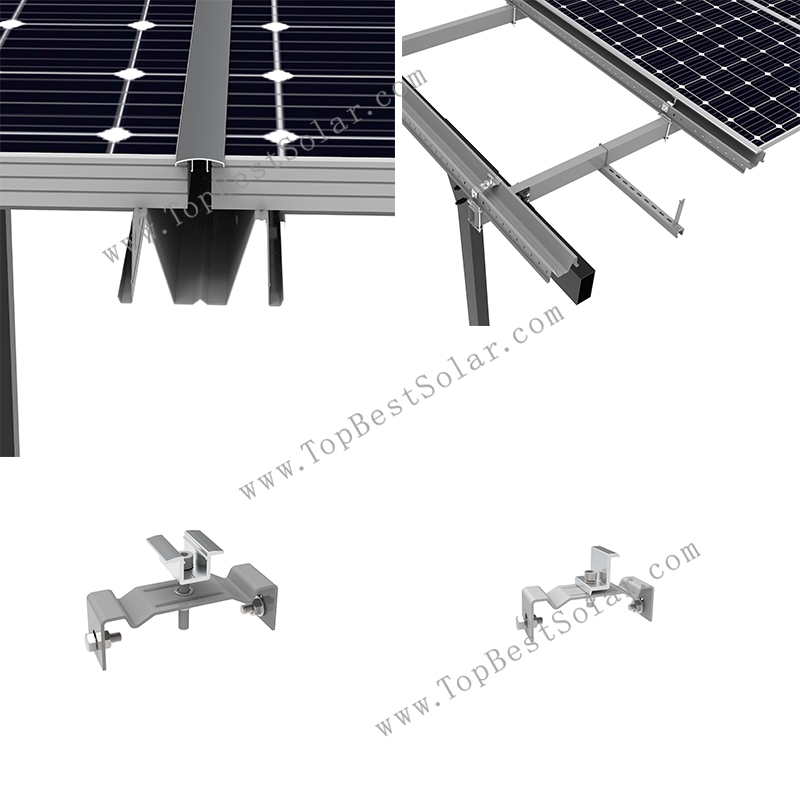

- Mid/End Clamp Kits: Stainless steel clamps with rubber gaskets that hold panels firmly without scratching, allowing thermal expansion/contraction to avoid cracking.
Versatile Applications
Ideal for diverse settings:
- Residential: Perfect for home driveways, protecting 1-2 cars while generating enough solar power to offset 50-80% of household electricity use.
- Commercial: Valuable for malls, office parks, and logistics centers—turning parking lots into revenue-generating assets (via solar power sales) while improving customer/employee convenience.
- Public Spaces: Schools, hospitals, and government facilities can use it to shade buses, emergency vehicles, or EV charging stations, aligning with green building certifications (LEED, BREEAM).
Effortless Installation & Cost Savings
With 80%+ factory pre-assembly, on-site installation is streamlined: components arrive pre-cut, pre-drilled, and labeled, reducing labor time by 30-40% compared to custom-built structures. This lowers project costs significantly—saving up to $2000 per 10-panel system in installation fees.
Plus, its solar-generated electricity can offset utility bills, with a typical payback period of 5-7 years for commercial projects and 7-9 years for residential ones—delivering long-term ROI while reducing carbon footprints.
For detailed specifications, custom design options, or to request a quote for your renewable energy project, visit TopBestSolar. Let our Solar Panel Ground Mounting Carport & Canopies turn your outdoor space into a sustainable, multi-functional asset.
