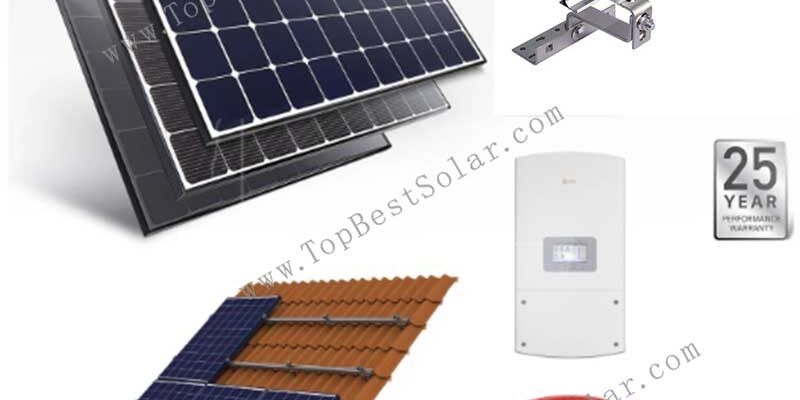

For EPC contractors and installers, curved-tile roofs (such as Roman, Spanish, or clay tiles) have long been a major challenge in distributed photovoltaic projects. The traditional method of drilling directly into fragile tiles often leads to tile cracking, water leakage risks, and costly rework. The SPC-RF-IK01-DR Tile Roof Photovoltaic Mounting System is specifically designed to address these issues. Utilizing a hidden hook design that connects directly to the roof framing and featuring fully pre-assembled components, this system eliminates roof damage risks while significantly reducing installation time. This article details why it has become the preferred solution for complex tile roof installations.
1. Damage-Free Installation: Solving Waterproofing Challenges
The core innovation of the SPC-RF-IK01-DR is its ability to secure solar panels without compromising roof integrity. Unlike methods that involve drilling into tile surfaces, this system employs a hidden hook design.
-
Load Transfer to Structure: Stainless steel hooks are fixed directly to roof rafters or battens. Loads are borne by the building’s main structure rather than the fragile tiles themselves, preventing concentrated stress and tile breakage.
-
Zero-Drill Tile Installation: Based on engineering drawings, tiles are carefully lifted at precise locations, hooks are secured to the wooden structure, and tiles are then repositioned. Since no drilling into tiles is required, the risk of future leaks is virtually eliminated.
-
Pre-Assembled Efficiency: All key components, including hooks and rail connectors, are pre-configured at the factory. This reduces on-site assembly errors, allowing installers to focus on precise positioning rather than complex cutting and fitting, thereby significantly lowering labor costs.
2. Engineered for Extreme Conditions: Safety and Durability
A mounting system must be as robust as the solar panels it supports. The SPC-RF-IK01-DR is designed to withstand decades of harsh weather.
-
Military-Grade Materials: Primary load-bearing components are made of SUS304 stainless steel and 6005-T5 high-strength aluminum alloy. This combination offers excellent corrosion resistance, making it suitable even for high-salinity coastal areas.
-
Extreme Load Ratings: Rigorously tested to withstand wind speeds up to 60 m/s (equivalent to a strong hurricane) and snow loads of 1.4 kN/m², ensuring the array remains securely in place even in the harshest conditions.
-
Full Compatibility: Supports both framed and frameless solar modules and allows for installation in portrait or landscape orientation, offering maximum flexibility for system designers.
3. Step-by-Step Installation Advantages
The streamlined process is fast, accurate, and ideal for large-scale residential and commercial deployments.
-
Positioning: After cleaning the roof, installers lift specific tiles according to the layout plan to expose the rafters.
-
Hook Fixation: Stainless steel hooks are positioned and securely fixed to rafters with structural screws. Tiles are then carefully replaced, with the hook arms extending naturally and blending seamlessly.
-
Rail Assembly: Aluminum rails are snapped or bolted onto the hooks. Thanks to pre-assembled components, rails can be quickly leveled and connected.
-
Panel Mounting: Solar panels are secured using mid and end clamps, forming a sturdy and reliable array.
4. Why This System Matters for Installers
Beyond technical specifications, the SPC-RF-IK01-DR delivers tangible business benefits.
-
Reduced Liability Risk: By eliminating tile damage and leakage risks, installers can offer stronger warranties and reduce costly post-installation service calls.
-
Faster ROI: The combination of pre-assembly and a simple installation process means projects are completed more quickly, increasing crew utilization and profitability.
-
Long-Term Reliability: With a typical 10-year product warranty and a design life matching that of PV modules (25+ years), this system is a “set-and-forget” solution that protects both the customer’s roof and energy investment.
For professional installers seeking a reliable, efficient, and secure way to handle curved-tile roofs, the SPC-RF-IK01-DR represents the current industry standard. It transforms what was traditionally a high-risk installation into a predictable, high-quality deliverable.
