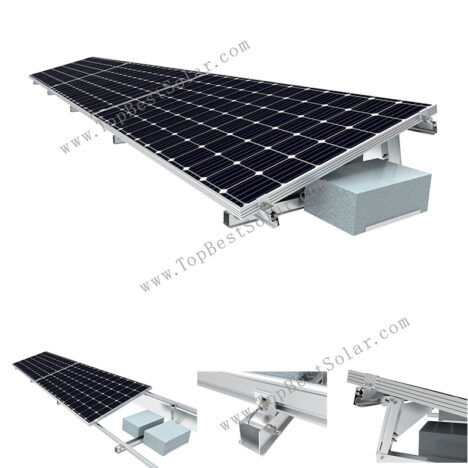

For commercial and industrial building owners, flat roofs represent a vast, untapped resource for solar energy. However, the challenge has always been balancing energy output with structural safety. Traditional penetrating mounts risk leaks and void warranties, while low-profile systems sacrifice generation efficiency. The Flat Roof Mounting-Adjustable Ballast Series offers a strategic solution: a non-penetrating, ballasted system with an adjustable tilt angle (0°–60°) that optimizes sunlight capture without compromising the roof membrane. But how does this system achieve high wind resistance while remaining easy to install? The answer lies in its precision-engineered combination of high-strength materials, aerodynamic design, and modular assembly.
The Engineering Behind the Performance
Unlike sloped roofs, flat roofs require a system that can withstand uplift forces without drilling. The Adjustable Ballast Series is designed from the ground up to meet the specific load and corrosion demands of commercial rooftops.
High-Strength Material Composition
The system utilizes a robust material specification to ensure longevity. The primary structure is made from aluminum alloy AL6005-T5, chosen for its excellent strength-to-weight ratio and corrosion resistance. Critical fasteners and connection components are crafted from stainless steel SUS304, providing superior durability in harsh outdoor environments and eliminating the risk of rust stains on the roof.
Wind and Snow Load Resilience
Stability is paramount for a ballasted system. This series is engineered to withstand wind speeds of up to 60 m/s and snow loads of 3.6 kN/m². The design incorporates aerodynamic principles and precise ballast calculations (using concrete blocks or specialized weights) to prevent sliding or tipping, even under extreme weather conditions. This makes it suitable for building heights up to 20 meters in diverse geographic locations.
Flexible Configuration for Maximum Energy
A key advantage is the adjustable tilt mechanism. The system allows installers to set an optimal angle between 0° and 60°, enabling projects to maximize irradiance capture based on the site’s latitude. It supports both portrait and landscape module orientations and is compatible with both framed and frameless solar panels, offering unparalleled flexibility for system designers.
Key Advantages for Commercial Rooftop Projects
The design of this mounting system addresses the three most significant pain points in flat roof solar installations: installation speed, roof integrity, and energy optimization.
-
Zero-Penetration Protection: By relying on gravity and calculated ballast instead of roof penetrations, the system completely eliminates the risk of water leakage. This is critical for protecting the building envelope and maintaining the manufacturer’s warranty on single-ply membranes (like TPO or PVC) and built-up roofs.
-
Rapid, Modular Installation: All major components are pre-assembled and modular. This “click-and-play” approach significantly reduces labor time and on-site assembly costs. Installers can quickly deploy the system without specialized welding or drilling equipment, accelerating the project’s return on investment.
-
Seasonal Optimization Potential: While set-and-forget is common, the adjustable design allows for seasonal tilt changes in regions where it is economically viable. This adaptability can increase annual energy production compared to fixed-tilt systems, especially in areas with high seasonal sun angle variation.
Strategic Applications Across Industries
The versatility of the Adjustable Ballast Series makes it the preferred choice for a wide range of flat roof applications where structural integrity and high yield are priorities.
-
Warehouses and Logistics Centers: These large, flat-roofed buildings benefit immensely from the system’s ability to cover vast areas without damaging the roof membrane. The high wind resistance is crucial for large, open industrial parks.
-
Commercial Malls and Retail Boxes: The non-penetrating design is ideal for occupied buildings where minimizing disruption and avoiding potential leaks into retail spaces are top concerns.
-
Institutional Buildings (Schools, Hospitals): For facilities that cannot risk operational downtime due to roof repairs, the ballasted system offers a safe, reliable way to adopt solar energy.
Conclusion: A Smart Investment in Rooftop Solar
Choosing the Flat Roof Mounting-Adjustable Ballast Series is a decision that prioritizes both performance and protection. By combining the structural security of a non-penetrating design with the energy gains of an adjustable tilt, this system unlocks the full potential of flat roof spaces. For EPC contractors and building owners, it represents a low-risk, high-reward pathway to maximizing solar ROI while safeguarding one of the building’s most critical assets—the roof.
