Does a pre-assembled triangle rack with Q235 and anodized aluminum rails really optimize flat roof power generation while resisting 40 m/s winds without on-site welding

Why the triangle geometry and 24°–33° adjustability matter for energy yield

• Triangle Structure as Statistically Stable Form:​ A triangular truss or frame distributes vertical (snow 1.4 KN/M²) and lateral (wind 40 m/s ≈ 144 km/h) loads along three axes, minimizing cantilever stress on the rail-to-rack connection. The adjustable pivot at the triangle apex or base allows the module plane to be locked at 24° (lower latitude/summer bias) or 33° (higher latitude/winter bias) without adding braces.
• Tilt Angle vs. Irradiance Capture:​ In many temperate/commercial zones (e.g., southern China, southern US, Mediterranean, parts of SEA), the annual optimal fixed tilt often falls between 25°–35°. A 24°–33° adjustable window lets the asset owner or installer tune once during commissioning (or seasonally if accessible) to beat the ~15–20% loss of flat-laid arrays, without over-engineering to 60° extreme angles that increase wind uplift disproportionately.
• Framed and Frameless Compatibility:​ The mid-clamp and end-clamp system (SUS304 or anodized aluminum) accommodates standard aluminum-frame modules as well as frameless glass-glass panels via sandwich-edge grips, making the rack future-proof for module upgrades.

Material synergy: Q235, AL6005-T5, and SUS304 in one system

• Q235 Structural Steel (Triangle Rack / Base Brackets):​ Hot-dip galvanized Q235 offers high yield strength and economical load-bearing for the primary triangle legs and concrete-block interface. It resists buckling under 1.4 KN/M² snow compression and provides a rigid anchor point for expansion bolts.
• AL6005-T5 Aluminum Alloy (U Rail / Clamps):​ The U-shaped rail and mid/end clamps use T5-tempered, anodized aluminum for lightweight handling, corrosion resistance, and non-magnetic stability. Aluminum’s lower modulus means slight flex under load, which can dampen micro-vibrations from wind gusts without cracking fasteners.
• SUS304 Stainless Steel (Fasteners / Hardware):​ All bolts, nuts, washers, and pivot pins are SUS304 to prevent galvanic corrosion at steel-aluminum interfaces and to retain torque under thermal cycling. This tri-material approach balances cost (Q235), weight (AL6005-T5), and durability (SUS304).

Key components and pre-assembly logic (From TopBestSolar Page)

• Product / System Name:​ Wholesale Adjustable Solar Panel Mount
• Core Structure:​ Adjustable triangle rack (folding or fixed-angle pivot type)
• Rail System:​ U Rail (U-steel or U-channel aluminum) with rail connector
• Clamping System:​
  • Mid clamp (center module-to-rail)
  • End clamp (terminal module edge)
  • Pre-assembled clamp sets available to reduce field sorting
• Foundation Interface:​

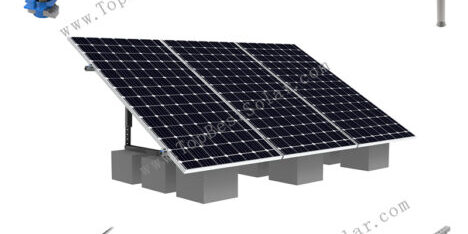

  • Concrete block (ballast, non-penetrating option)
  • Expansion bolt (penetrating option for concrete roof/deck)
• Materials:​ Q235 (HDG), AL6005-T5 (anodized), SUS304
• Tilt Range:​ 24° to 33° (adjustable via triangle leg hole positions or sliding pivot)
• PV Module:​ Framed and Frameless; Portrait and Landscape orientation
• Load Ratings:​ Wind 40 m/s, Snow 1.4 KN/M²
• Installation Site:​ Ground, Flat Roof (residential, commercial)
• Feature:​ High pre-assembly — no on-site cutting, welding, or threading required
• Tools Referenced (Field):​ Marker Pen, Adjustable Wrench, Allen Key Wrench, Electric Screwdriver Wrench, Tape Measure, Pile Driver, Nylon Line, T Wrench
• Supplier:​ TopBestSolar (topbestsolar.com)

Installation workflow and why pre-assembly changes the timeline

1. Pre-Assembled Clamp Prep:​ Mid and end clamps are factory-matched to rail profile; installer only locks them with an Allen key or socket wrench.
2. Foundation Marking & Drilling:​ On concrete slab/roof, mark layout with marker pen and nylon line, drill holes, drive expansion bolts. For ballast-only (non-penetrating), place rated concrete blocks.
3. Triangle Rack Deployment:​ Unfold or set the triangle rack to the desired angle (24°/33°/intermediate) using the pre-drilled hole positions; this is a manual pivot lock, not a weld adjustment.
4. Fix Rack to Base:​ Secure triangle base to concrete block via bolt or strap; verify with tape measure for row alignment.
5. Rail Attachment:​ Fix U rail onto triangle top flange using M8 bolt assembly; rail connectors join multiple rails linearly.
6. Module Clamping:​ Place PV module on rail (portrait or landscape), attach via mid and end clamps, torque to spec.
7. Final Check:​ Verify tilt angle, row spacing (shading), and clamp tightness; no cutting residues or weld slag to clean up.

Typical application scenarios

• Residential Flat Roof (Concrete/Tile):​ Homeowners seeking to add PV without penetrating waterproof layers (use concrete block ballast) or with controlled penetration (expansion bolt with sealant). 24°–33° tilt lifts panels above roof-debris accumulation and improves rain self-cleaning.
• Commercial Flat Roof (Warehouse/Factory):​ Large contiguous areas where pre-assembled triangles enable row-by-row rapid deployment. The system’s 40 m/s wind rating covers most non-cyclonic urban zones; snow 1.4 KN/M² suits mild-to-moderate winter regions.
• Ground Mount (Open Area / Agri-Voltaic):​ On leveled ground with concrete foundation blocks or mini-piles, the triangle rack anchors firmly; adjustable tilt helps optimize for seasonal crop-light sharing in agri-PV.
• Retrofit of Existing Flat-Laid Arrays:​ Owners of older ballasted flat systems can intersperse these adjustable triangles to boost yield without full rack replacement, since the U rail and clamps are compatible with most framed modules.

Sourcing checklist for wholesalers and EPCs

Conclusion: A pre-assembled, tri-material triangle system for practical flat-roof yield optimization
