In the fast – paced world of solar energy, every component plays a vital role in ensuring the efficiency and durability of a solar panel system. Among these essential parts, end clamp solar (also known as solar panel end clamps) stands out as a key element that secures solar panels in place, whether on rooftops or ground – mounted setups. This guide will walk you through everything you need to know about end clamp solar, from selection criteria to installation steps
1.What Is End Clamp Solar & Why It Matters
End clamp solar is a specialized fastening device designed to hold the edges of solar panels firmly onto mounting rails. Unlike mid clamps, which secure the middle sections of adjacent panels, end clamps focus on the outermost panels of a solar array, preventing shifting, wobbling, or damage caused by wind, rain, or temperature fluctuations.
For both residential and commercial solar projects, high – quality end clamp solar is non – negotiable. A weak or ill – fitted end clamp can lead to panel misalignment, reduced energy output, and even safety hazards over time. For example, in areas with strong winds (such as coastal regions), solar panel end clamp for roof installation must withstand high wind loads to keep panels stable. Similarly, solar panel end clamp for ground installation needs to resist moisture and corrosion from soil or grass.
2.How to Choose the Right Solar Panel End Clamps
When selecting solar panel end clamps, solar panel end clamp manufacturers recommend focusing on three critical factors: material, adjustability, and compatibility. These factors directly affect the clamp’s performance and lifespan.
Material: Aluminum vs. Stainless Steel (As Advised by Manufacturers)
Two of the most common materials used by solar panel end clamp manufacturers are aluminum and stainless steel, each with unique advantages tailored to different scenarios:
– Aluminum solar panel end clamps: Most solar panel end clamp manufacturers produce this type due to its lightweight, cost – effective, and rust – resistant properties.They are ideal for most residential projects and areas with mild weather. Aluminum clamps are also easy to install, making them a favorite among DIY solar enthusiasts — a point often highlighted in product guides from manufacturers.
– Stainless steel solar panel end clamps: Premium solar panel end clamp manufacturers prioritize this material for harsh environments (e.g., coastal areas with saltwater spray or industrial zones with high pollution). While slightly more expensive than aluminum, stainless steel clamps offer long – term reliability, making them a smart choice for commercial projects or ground – mounted arrays — a recommendation backed by leading manufacturers.
Adjustability (A Key Feature of Modern Manufacturers’ Products)

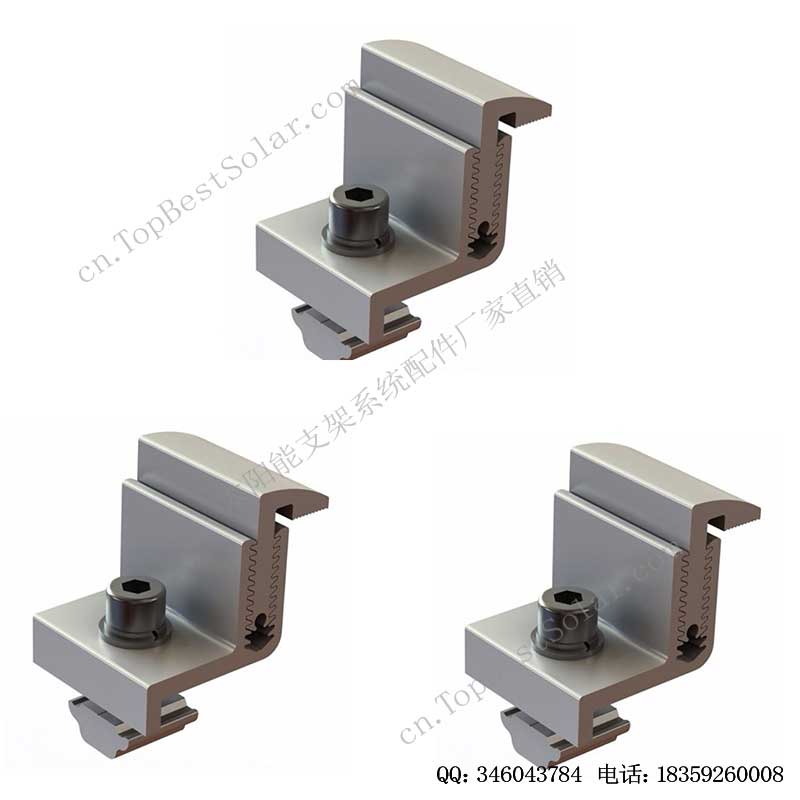

Adjustable solar panel end clamps are a game – changer, according to top solar panel end clamp manufacturers. These clamps can be modified to fit different panel thicknesses (typically 3mm to 15mm) and mounting rail sizes, eliminating the need to buy multiple clamp types for a single project. For instance, if you’re working with 50cm x 100cm solar panels (as many residential users do), adjustable end clamps from reputable manufacturers can adapt to the panel’s edge dimensions seamlessly.
Compatibility (Verified by Manufacturers)
Solar panel end clamp manufacturers stress the importance of checking compatibility with your solar panel’s frame (or frameless design) and mounting system.Frameless panels, for example, require end clamps with soft gaskets (a detail many manufacturers include in their product specs) to avoid scratching the panel surface, while framed panels may need clamps with stronger gripping force — a tip often found in manufacturers’ user manuals.
3.Step – by – Step Solar Panel End Clamp Installation Guide
Installing solar panel end clamps is a straightforward process, but solar panel end clamp manufacturers advise following best practices to ensure optimal performance. Here’s a simple guide, incorporating tips from leading manufacturers:
- Prepare Tools & Materials: Gather your end clamps (from trusted solar panel end clamp manufacturers), mounting rails, bolts, washers, a drill, and a torque wrench. If using V type solar panel end clamps (designed for angled panels and widely produced by manufacturers), ensure you have the correct angle adapters — a note often included in manufacturers’ installation kits.
- Position the Mounting Rails: Secure the mounting rails to your roof or ground structure, ensuring they are level and spaced according to your panel layout. Many solar panel end clamp manufacturers provide rail spacing guidelines in their product documentation.
- Place the Solar Panels: Set the first (outermost) solar panel onto the rails, aligning its edge with the end of the rail.
- Attach the End Clamp: Slide the solar panel end clamp over the panel’s edge and onto the rail. Use bolts and washers to fasten the clamp, tightening with a torque wrench to the solar panel end clamp manufacturers’ recommended level (usually 8 – 10 N·m) — over – tightening can damage the panel or rail, a warning emphasized by all reputable manufacturers.
- Repeat for Additional Panels: For the other end of the solar array, repeat steps 3 – 4 with another end clamp. Use mid clamps (often sold by the same solar panel end clamp manufacturers) for the middle panels to complete the setup.
4. Final Tips for Long – Lasting Solar Panel End Clamp Performance (From Manufacturers)
To maximize the lifespan of your solar panel end clamps, solar panel end clamp manufacturers recommend the following:
– Inspect clamps annually for loose bolts, corrosion, or damage. Tighten loose bolts and replace corroded clamps immediately — a maintenance tip shared by all leading manufacturers.
– Clean clamps regularly (especially in dusty or coastal areas) to remove dirt, salt, or debris that can cause corrosion. Use a soft cloth and mild detergent, as advised by most solar panel end clamp manufacturers.
– Choose high – quality clamps from reputable solar panel end clamp manufacturers — investing in quality now saves you from costly repairs later.
Whether you’re a solar installer, a homeowner building a residential system, or a business owner planning a commercial project, understanding how to select and use products from reliable solar panel end clamp manufacturers is essential for a safe, efficient, and long – lasting solar array. By following the tips in this guide, you can ensure your solar system performs at its best for decades to come.
