In residential and commercial solar deployments on flat roofs or open ground, one of the persistent trade-offs is between structural rigidity and installation agility. Fixed flat-laid panels suffer from suboptimal irradiance angles, especially in mid-to-high latitudes, while custom-welded tilt structures consume days of on-site labor, require hot-work permits, and introduce corrosion risks at weld seams. Wholesale Adjustable Solar Panel Mount — Q235 AL6005-T5 SUS304 Triangle Rack U Rail Tilt Angle 24 to 33 Degrees Wind Load 40 m/s Snow Load 1.4 KN/M2 Framed Frameless PV Modules Portrait Landscape for Ground Flat Roof Residential Commercial Pre-Assembled No On Site Cutting Welding (from TopBestSolar, topbestsolar.com) resolves this by delivering a factory-pre-assembled triangular tilt system: the primary load-bearing triangle rack and U rails are fabricated from Q235 structural steel (with optional ZAM/HDG) or AL6005-T5 aluminum alloy, connected via SUS304 stainless hardware, with a field-adjustable pivot setting 24°, 33°, or intermediate stops to match local latitude and seasonal optimization. Because 80–90% of bolting and rail alignment is completed at the factory, the installer unfolds the triangle, fixes it to a concrete block or penetrates the roof with expansion bolts, clamps the U rail, and secures framed or frameless modules — all without cutting, grinding, or welding. But how does the 24°–33° band compare to seasonal solar altitude for typical commercial zones, why combine Q235 (steel) legs with AL6005-T5 (aluminum) rails rather than using a single material, and how does the concrete block + expansion bolt dual anchoring scheme reconcile ballast weight limits with 40 m/s uplift on flat roofs? Below is the full breakdown for EPCs, wholesalers, roofing contractors, and procurement officers evaluating scalable flat-roof/ground tilt solutions.
Why the triangle geometry and 24°–33° adjustability matter for energy yield
The Wholesale Adjustable Solar Panel Mount — Q235 AL6005-T5 SUS304 Triangle Rack U Rail Tilt Angle 24 to 33 Degrees Wind Load 40 m/s Snow Load 1.4 KN/M2 Framed Frameless PV Modules Portrait Landscape for Ground Flat Roof Residential Commercial Pre-Assembled No On Site Cutting Welding (from TopBestSolar, topbestsolar.com) is not a generic flat prop but a calculated tilt optimizer:
-
Triangle Structure as Statistically Stable Form: A triangular truss or frame distributes vertical (snow 1.4 KN/M²) and lateral (wind 40 m/s ≈ 144 km/h) loads along three axes, minimizing cantilever stress on the rail-to-rack connection. The adjustable pivot at the triangle apex or base allows the module plane to be locked at 24° (lower latitude/summer bias) or 33° (higher latitude/winter bias) without adding braces.
-
Tilt Angle vs. Irradiance Capture: In many temperate/commercial zones (e.g., southern China, southern US, Mediterranean, parts of SEA), the annual optimal fixed tilt often falls between 25°–35°. A 24°–33° adjustable window lets the asset owner or installer tune once during commissioning (or seasonally if accessible) to beat the ~15–20% loss of flat-laid arrays, without over-engineering to 60° extreme angles that increase wind uplift disproportionately.
-
Framed and Frameless Compatibility: The mid-clamp and end-clamp system (SUS304 or anodized aluminum) accommodates standard aluminum-frame modules as well as frameless glass-glass panels via sandwich-edge grips, making the rack future-proof for module upgrades.
Material synergy: Q235, AL6005-T5, and SUS304 in one system
A key differentiator of the Wholesale Adjustable Solar Panel Mount — Q235 AL6005-T5 SUS304 Triangle Rack U Rail Tilt Angle 24 to 33 Degrees Wind Load 40 m/s Snow Load 1.4 KN/M2 Framed Frameless PV Modules Portrait Landscape for Ground Flat Roof Residential Commercial Pre-Assembled No On Site Cutting Welding (from TopBestSolar, topbestsolar.com) is the intentional split of material roles:
-
Q235 Structural Steel (Triangle Rack / Base Brackets): Hot-dip galvanized Q235 offers high yield strength and economical load-bearing for the primary triangle legs and concrete-block interface. It resists buckling under 1.4 KN/M² snow compression and provides a rigid anchor point for expansion bolts.
-
AL6005-T5 Aluminum Alloy (U Rail / Clamps): The U-shaped rail and mid/end clamps use T5-tempered, anodized aluminum for lightweight handling, corrosion resistance, and non-magnetic stability. Aluminum’s lower modulus means slight flex under load, which can dampen micro-vibrations from wind gusts without cracking fasteners.
-
SUS304 Stainless Steel (Fasteners / Hardware): All bolts, nuts, washers, and pivot pins are SUS304 to prevent galvanic corrosion at steel-aluminum interfaces and to retain torque under thermal cycling. This tri-material approach balances cost (Q235), weight (AL6005-T5), and durability (SUS304).

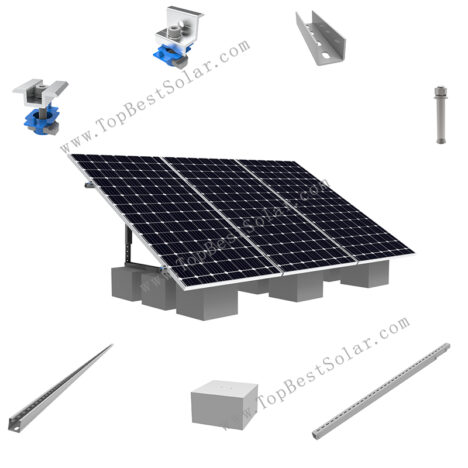

Key components and pre-assembly logic (From TopBestSolar Page)
-
Product / System Name: Wholesale Adjustable Solar Panel Mount
-
Core Structure: Adjustable triangle rack (folding or fixed-angle pivot type)
-
Rail System: U Rail (U-steel or U-channel aluminum) with rail connector
-
Clamping System:
-
Mid clamp (center module-to-rail)
-
End clamp (terminal module edge)
-
Pre-assembled clamp sets available to reduce field sorting
-
-
Foundation Interface:
-
Concrete block (ballast, non-penetrating option)
-
Expansion bolt (penetrating option for concrete roof/deck)
-
-
Materials: Q235 (HDG), AL6005-T5 (anodized), SUS304
-
Tilt Range: 24° to 33° (adjustable via triangle leg hole positions or sliding pivot)
-
PV Module: Framed and Frameless; Portrait and Landscape orientation
-
Load Ratings: Wind 40 m/s, Snow 1.4 KN/M²
-
Installation Site: Ground, Flat Roof (residential, commercial)
-
Feature: High pre-assembly — no on-site cutting, welding, or threading required
-
Tools Referenced (Field): Marker Pen, Adjustable Wrench, Allen Key Wrench, Electric Screwdriver Wrench, Tape Measure, Pile Driver, Nylon Line, T Wrench
-
Supplier: TopBestSolar (topbestsolar.com)
Installation workflow and why pre-assembly changes the timeline
With the Wholesale Adjustable Solar Panel Mount — Q235 AL6005-T5 SUS304 Triangle Rack U Rail Tilt Angle 24 to 33 Degrees Wind Load 40 m/s Snow Load 1.4 KN/M2 Framed Frameless PV Modules Portrait Landscape for Ground Flat Roof Residential Commercial Pre-Assembled No On Site Cutting Welding (from TopBestSolar, topbestsolar.com), the sequence is deliberately stripped of fabrication steps:
-
Pre-Assembled Clamp Prep: Mid and end clamps are factory-matched to rail profile; installer only locks them with an Allen key or socket wrench.
-
Foundation Marking & Drilling: On concrete slab/roof, mark layout with marker pen and nylon line, drill holes, drive expansion bolts. For ballast-only (non-penetrating), place rated concrete blocks.
-
Triangle Rack Deployment: Unfold or set the triangle rack to the desired angle (24°/33°/intermediate) using the pre-drilled hole positions; this is a manual pivot lock, not a weld adjustment.
-
Fix Rack to Base: Secure triangle base to concrete block via bolt or strap; verify with tape measure for row alignment.
-
Rail Attachment: Fix U rail onto triangle top flange using M8 bolt assembly; rail connectors join multiple rails linearly.
-
Module Clamping: Place PV module on rail (portrait or landscape), attach via mid and end clamps, torque to spec.
-
Final Check: Verify tilt angle, row spacing (shading), and clamp tightness; no cutting residues or weld slag to clean up.
Because cutting/welding is eliminated, a 2–3 person crew can complete a 10 kW flat-roof array in a fraction of the time required for welded steel structures, and no hot-work permit is needed in occupied buildings.
Typical application scenarios
-
Residential Flat Roof (Concrete/Tile): Homeowners seeking to add PV without penetrating waterproof layers (use concrete block ballast) or with controlled penetration (expansion bolt with sealant). 24°–33° tilt lifts panels above roof-debris accumulation and improves rain self-cleaning.
-
Commercial Flat Roof (Warehouse/Factory): Large contiguous areas where pre-assembled triangles enable row-by-row rapid deployment. The system’s 40 m/s wind rating covers most non-cyclonic urban zones; snow 1.4 KN/M² suits mild-to-moderate winter regions.
-
Ground Mount (Open Area / Agri-Voltaic): On leveled ground with concrete foundation blocks or mini-piles, the triangle rack anchors firmly; adjustable tilt helps optimize for seasonal crop-light sharing in agri-PV.
-
Retrofit of Existing Flat-Laid Arrays: Owners of older ballasted flat systems can intersperse these adjustable triangles to boost yield without full rack replacement, since the U rail and clamps are compatible with most framed modules.
Sourcing checklist for wholesalers and EPCs
When requesting a quotation for Wholesale Adjustable Solar Panel Mount — Q235 AL6005-T5 SUS304 Triangle Rack U Rail Tilt Angle 24 to 33 Degrees Wind Load 40 m/s Snow Load 1.4 KN/M2 Framed Frameless PV Modules Portrait Landscape for Ground Flat Roof Residential Commercial Pre-Assembled No On Site Cutting Welding (from TopBestSolar, topbestsolar.com):
✅ Specify material split — Q235 HDG triangle vs. AL6005-T5 triangle? U rail always AL6005-T5? SUS304 grade confirmed?
✅ Confirm tilt stops — Fixed 24°/33° holes or continuous slot (infinite adjustability)?
✅ State load environment — 40 m/s wind / 1.4 KN/M² snow sufficient or need upgrade? Any local code (ASCE/Eurocode) add-ons?
✅ Module type/dimensions — Framed (frame height range) or frameless? Portrait vs. landscape mix? Rail length must match module width/height.
✅ Foundation preference — Concrete block ballast only? Expansion bolt penetration? Hybrid? Need EPDM pad under metal base?
✅ Pre-assembly level — Are triangles shipped folded or fully assembled? Clamps pre-attached to rails or loose-pack?
Conclusion: A pre-assembled, tri-material triangle system for practical flat-roof yield optimization
